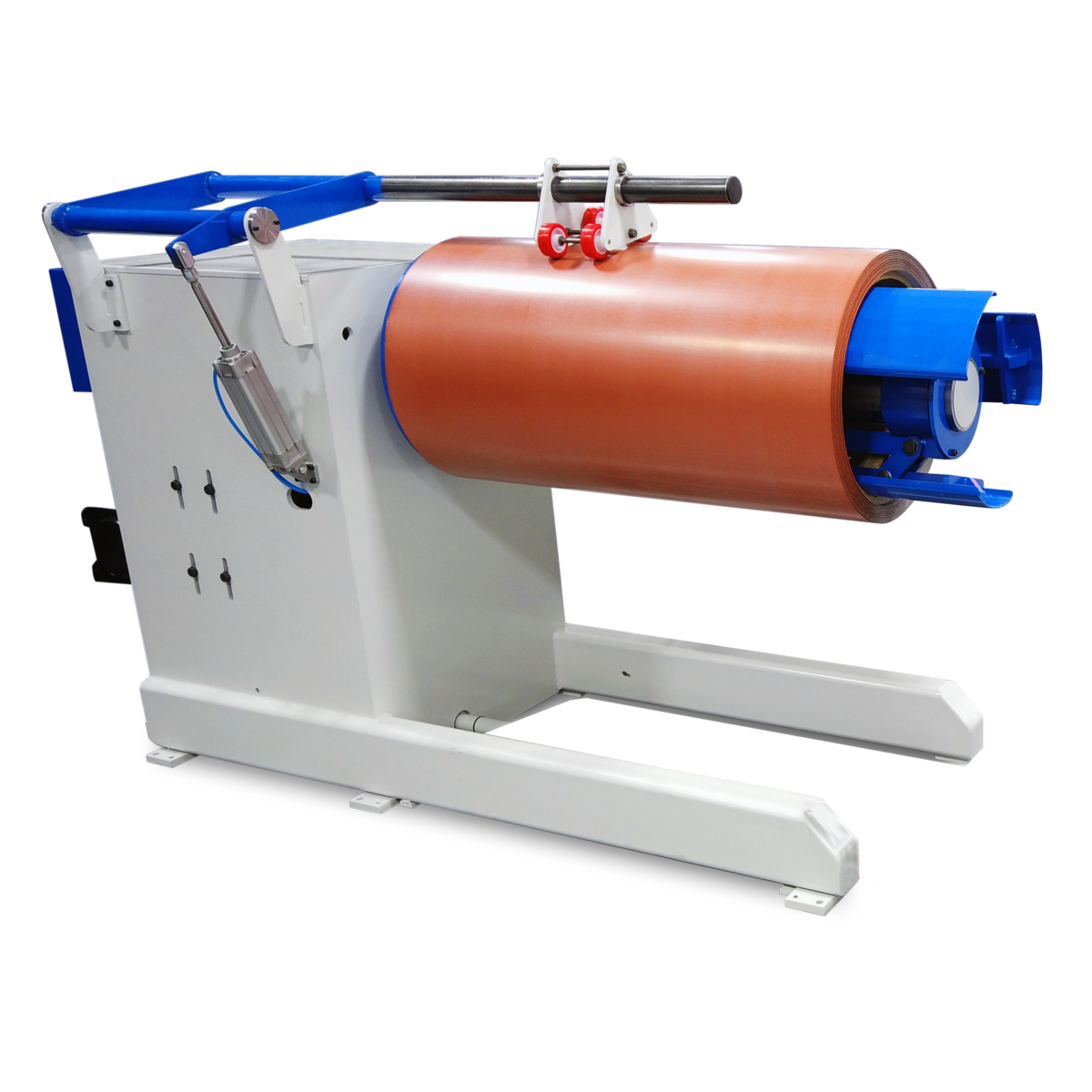

3 Ton Powered Decoiler

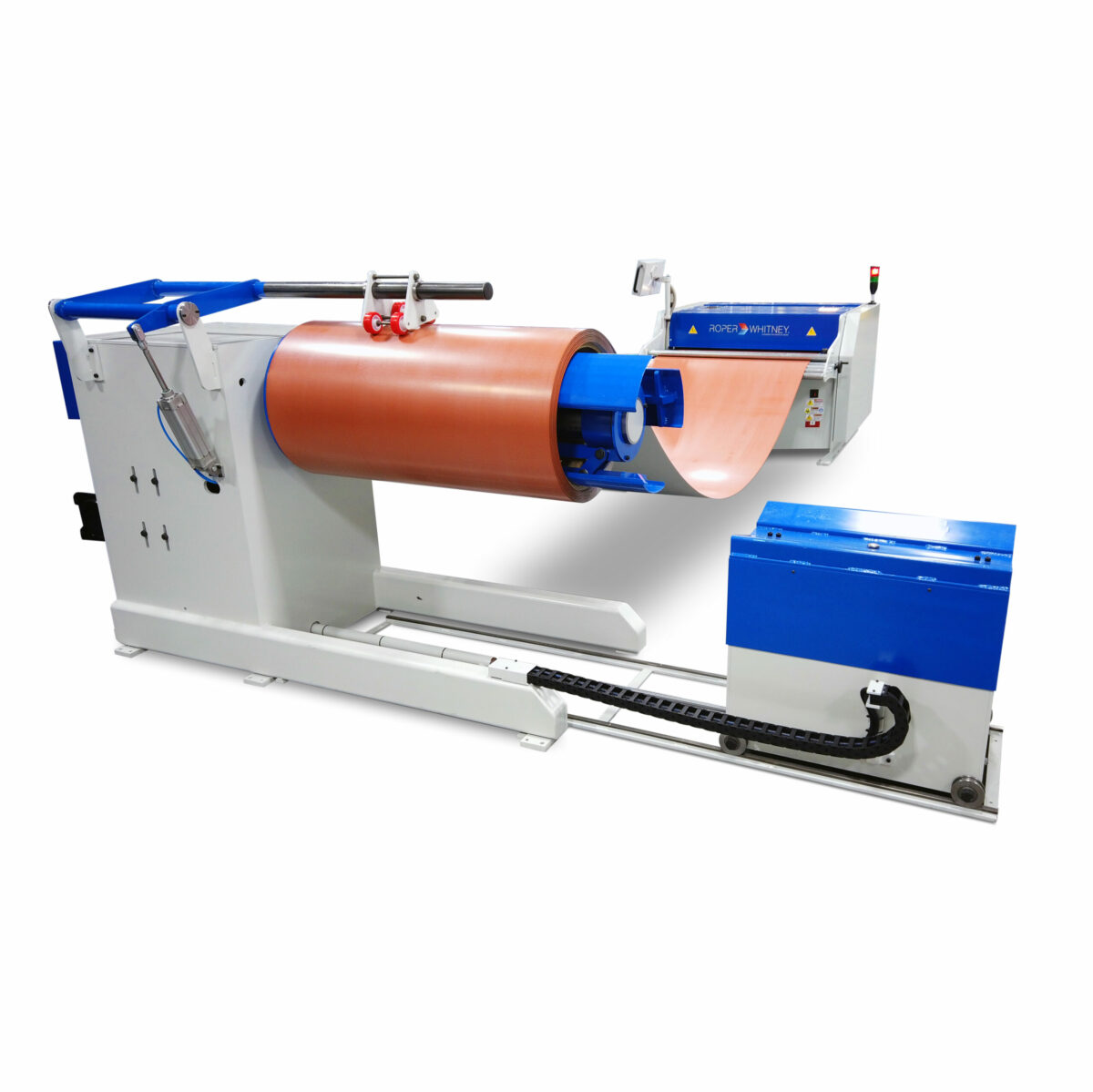

Suitable for both manual and automatic operation, the 3 Ton Powered Decoiler accommodates coil weights of up to 6,600 pounds and widths of up to 49.25 inches. It features hydraulic-powered mandrel expansion, electric rotational power, and a dancing arm for speed control. A coil cart is an optional addition.
Description
| Specifications | Without Coil Cart | With Coil Cart |
| Max Coil Weight | 6,600 lbs | 6,600 lbs |
| Max Coil Width | 49.25” | 49.25” |
| Max Coil Outside Diameter | 55” | 41.25” |
| Mandrel Expansion | 18” to 21.25” | 18” to 21.25” |
| Extra Expansion | No | No |
| Mandrel Plates | 3 | 3 |
| Mandrel Power | Hydraulic 1HP | Hydraulic 1HP |
| Rotational Power | Electric 3HP | Electric 3HP |
| Feeding Speed | 85 fpm | 85 fpm |
| Speed Control | Dancing arm | Dancing arm |
| Coil Cart Movement | – | Hydraulic |
| Coil Cart Travel Vertical | – | 10” |
| Coil Cart Travel Horizontal | – | 65” |
| Voltage | 230VAC 3 phase | 230VAC 3 phase |
| Dimensions | 54” x 104” x 68” | 54” x 146” x 68” |
| Weight | 2,650 lbs | 3,300 lbs |
Additional information
| Weight | 2650 lbs |
|---|---|
| Dimensions | 54 × 104 × 68 in |
