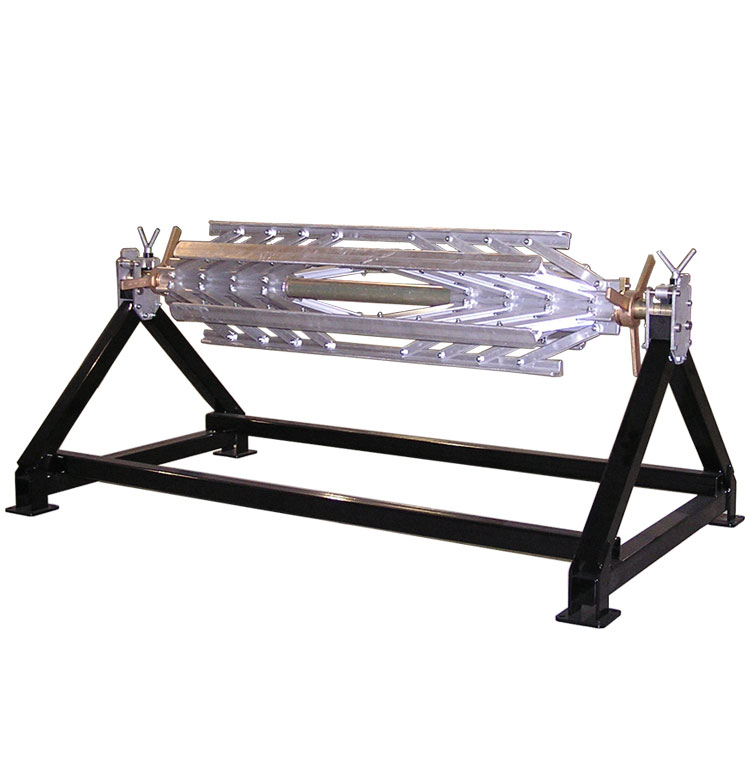

2.5 Ton Manual Decoiler

This 2.5 Ton Manual Decoiler accommodates coil weights of up to 5,000 pounds and widths of up to 48 inches. It features a six-prong detachable aluminum core, dual locking spider system, friction brakes, and coil top-loading.

SKU: 197940104 Category: Tag:
Description
Specifications
Max Coil Weight                                                                                            5,000 lbs
Max Coil Width                                                                                              48”
Max Coil Outside Diameter                                                                           34”
Mandrel Expansion                                                                                       15” to 21”
Core                                                                                                              Aluminum
Detachable Core                                                                                           Yes
Coil Load                                                                                                       Top
Wheels                                                                                                          Opt.
Dimensions                                                                                                   36″ x 64″ x 36″
Weight                                                                                                           230 lbs
Additional information
Weight230 lbs
Dimensions36 × 64 × 36 in
