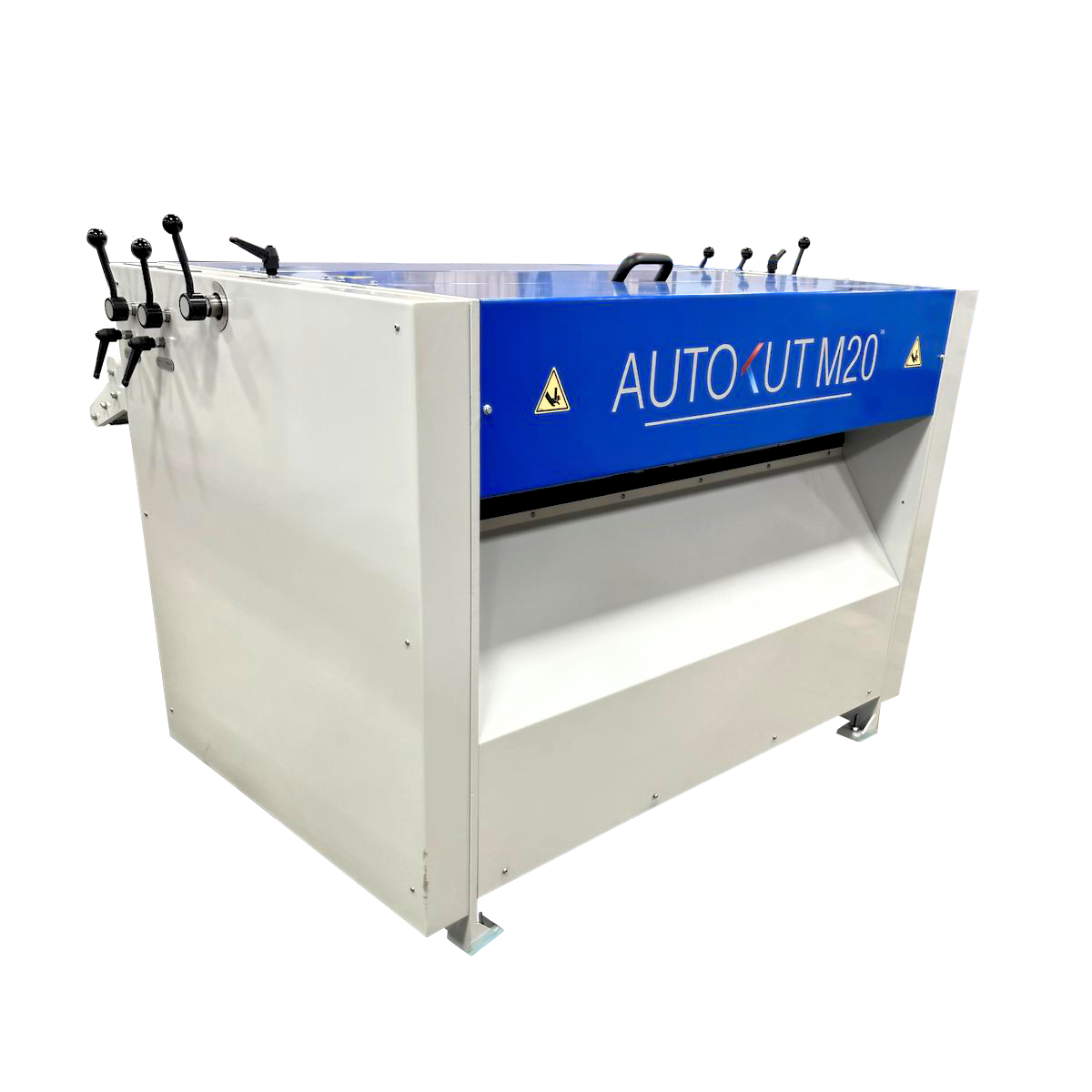

AutoKut M20
The AutoKut M20’s compact design takes up little space and boosts shop efficiency, ideal for smaller sheet metal shops. Its reliable feed system reaches speeds up to 85 feet per minute, blanking and slitting up to 20 gauge steel and accommodating coil widths up to 50 inches. The AutoKut M20 includes a touchscreen Schneider control system, three straightening rollers, and slitting rollers that come standard with 5 pairs of knives.
Description
| AutoKut M20 Specifications | |
| Maximum Slitting Capacity Mild Steel | 20 gauge |
| Slitting Capacity Stainless Steel | 24 gauge |
| Slitting Capacity Aluminum | .050” |
| Maximum Blanking Capacity Mild Steel | 20 gauge |
| Blanking Capacity Stainless Steel | 24 gauge |
| Blanking Capacity Aluminum | .050” |
| Max Coil Width | 50” |
| Min Coil Width | 8” |
| Minimum Edge Trim | 1/4” |
| Minimum Slit Width | 2 3/8” |
| Coil Width Adjustment | Manual |
| Thickness Adjustment | Manual |
| Straightener Rollers | 3 (1 over 2) |
| Straightener Rollers Adjustment | Manual |

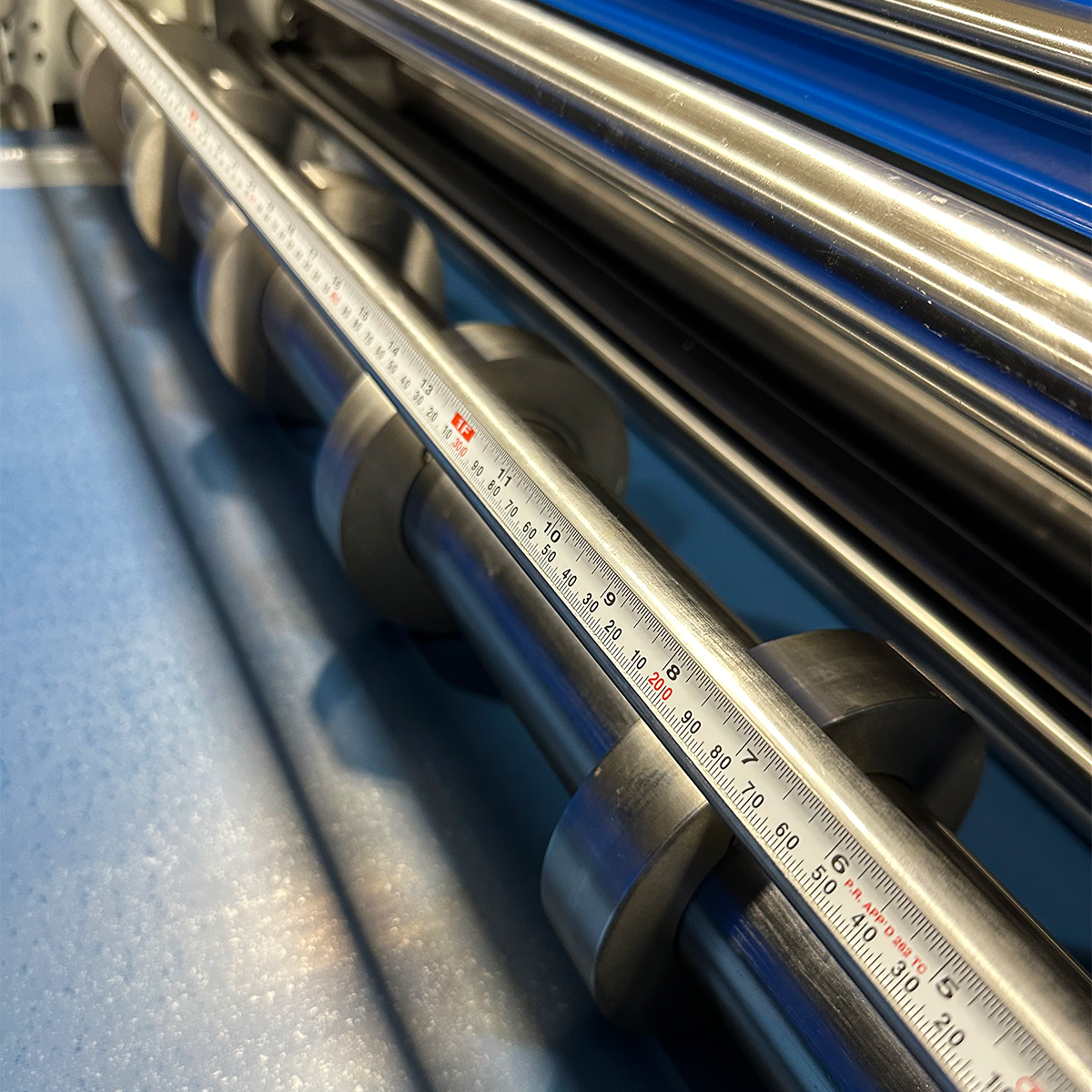

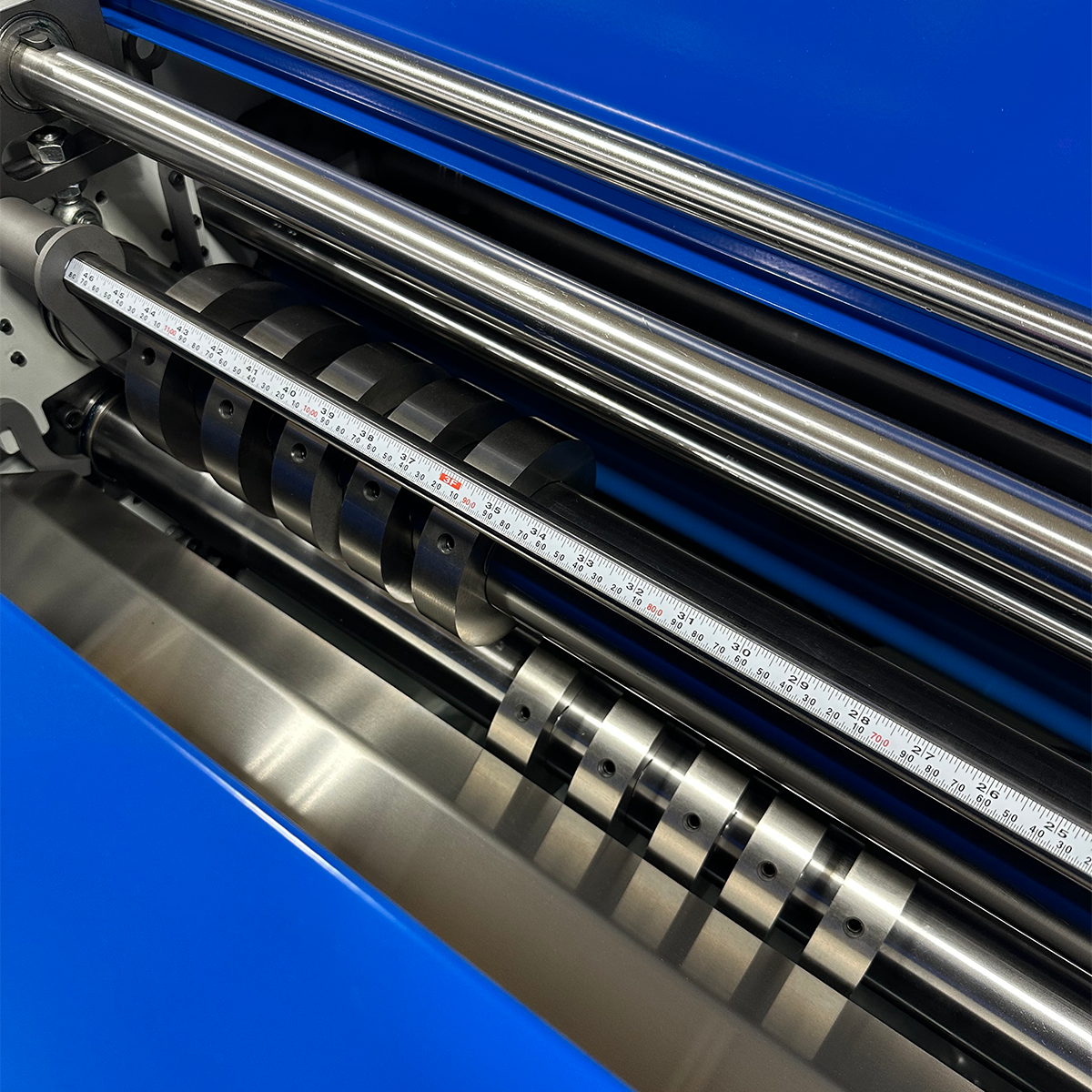

| Knives (standard) | 5 |
| Knives (max) | 5 |
| Knives Overlap Adjustment | Manual |
| Knives Distance Adjustment | Manual |
| Max Speed | 85 fpm |
| Guillotine | 1.4HP – electric |
| Drive | 1.4HP – electric |
| Film Applicator | Optional |

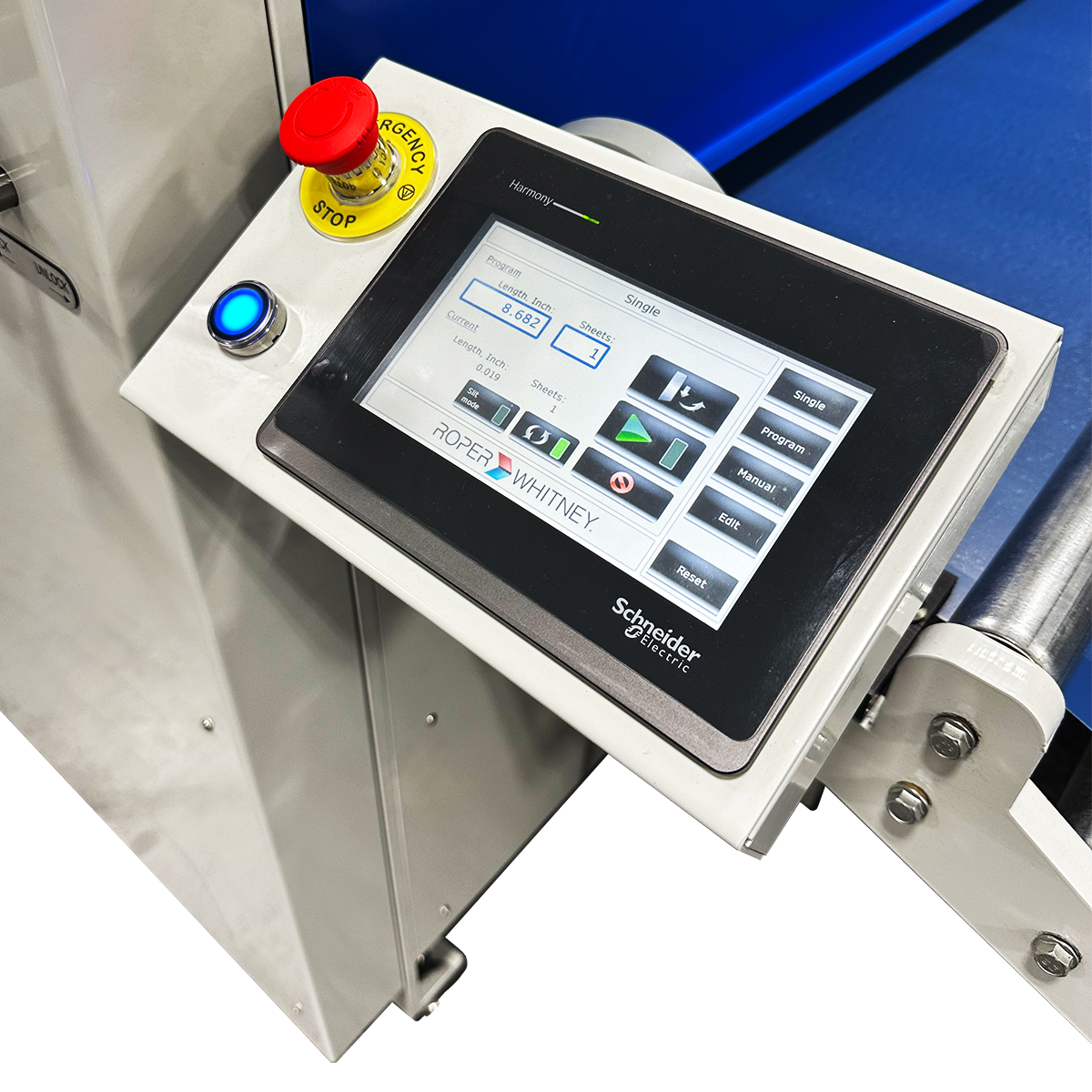

| Control | 7” Touchscreen |
| Voltage | 230VAC 3 phase – 16 Amps |
| Dimensions | 59” x 65.5” x 46” |
| Weight | 3,086 lbs |
Additional information
| Weight | 3086 lbs |
|---|---|
| Dimensions | 59 × 65.5 × 46 in |
